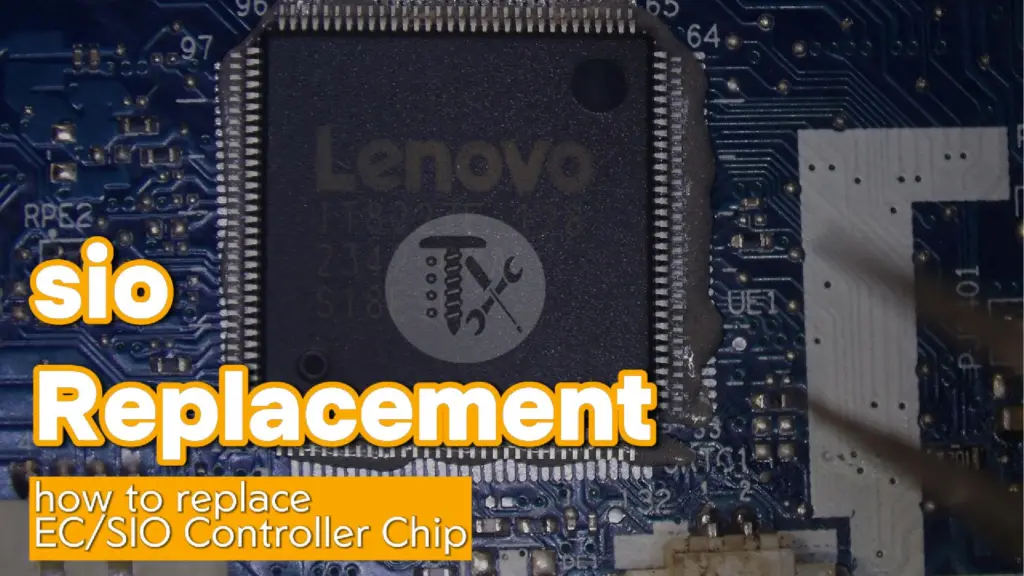

HOW TO REPLACE SIO CHIP- HANDSKILLS TRAINING

one that hits at the heart of advanced board-level repair. Replacing SMD, PGA, and especially BGA chips isn’t just about having the right tools—it’s about having the right hands. Here’s why handskill is absolutely critical:

🧠 Precision Over Power: Why Handskill Matters

🔍 1. Microscopic Accuracy

• SMD and BGA pads are tiny and fragile. A shaky hand or misaligned nozzle can lift pads, tear traces, or cause hidden shorts.
• BGA chips have hundreds of hidden solder balls—alignment must be perfect, or the chip won’t boot, even if it looks “installed.”

🔥 2. Controlled Heat Application

• Too much heat warps the board or damages nearby components. Too little, and the solder won’t flow.
• Skilled techs know how to “read” solder behavior—watching for shimmer, collapse, and flux reaction—to time the lift or drop precisely.

🧼 3. Pad Preservation and Cleaning

• After chip removal, cleaning pads without damaging them is an art. It takes finesse to wick old solder, remove flux, and prep the surface for reballing or replacement.
• Poor cleaning leads to cold joints, weak adhesion, or even corrosion over time.

🧲 4. Component Handling and Placement

• Placing a PGA or BGA chip requires steady hands and perfect alignment. Even a half-millimeter shift can cause misregistration.
• Skilled hands can “float” the chip into place during reflow, ensuring all balls seat correctly.

🧪 5. Post-Replacement Validation

• A good repair isn’t just about soldering—it’s about verifying. Skilled techs know how to test for shorts, check voltages, and validate boot behavior without damaging the board.

🛠️ Think of It Like Surgery

Replacing a BGA chip is like neurosurgery for a motherboard. You’re working blind under the chip, relying on feel, timing, and experience. No amount of automation replaces the intuition of a well-trained hand.
